sfc300-poe

100Mbps PoE 4포트 + 100Mbps SFP 2슬롯, PoE 60W, Din-Rail 설치지원, 동작온도: -40~80°C, 산업용 스위치

100Mbps PoE 4포트 + 100Mbps SFP 2슬롯, PoE 60W, Din-Rail 설치지원, 동작온도: -40~80°C, 산업용 스위치

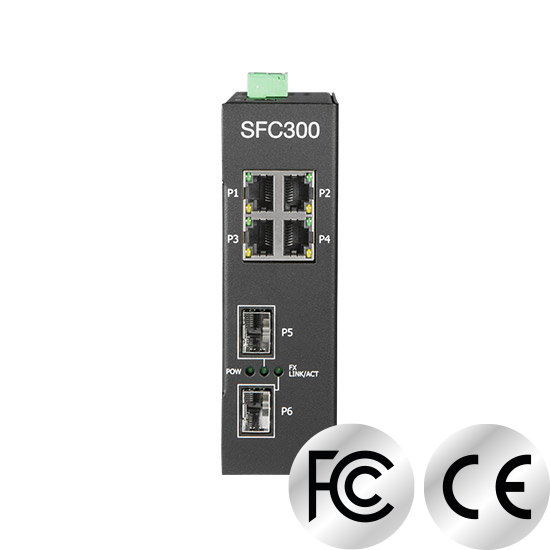

SFC300POE는 산업현장에 적합한 100Mbps 산업용 POE 스위치입니다.

Key Features

Download

Specifications

Standards

IEEE 802.3 10Base-T

IEEE 802.3u 100BaseTX Fast Ethernet

IEEE 802.3ab 1000Base-T

IEEE 802.3 af Power Over Ethernet

TP 포트

광 포트(1G)

4 TP(100Mbps)

100M SFP 2슬롯

POE포트

4 PoE(af/at)

포트별 PoE 15.4W

Switch Fabric

Throughtput

Memory(RAM)

Flash Memory

MAC Table

Jumbo Frame

1.2Gbps

14.8Mpps

입력전원

무부하전력

최대전력

전원이중화

DC 48V

동작온도

설치방법

크기

-40 ~ 70ºC

Din Rail

42(W) x 134(D) x 142(H)mm

Compare Product Lines

	SFC300T	SFC300-SCS	SFC300-SCS2	SFC300-SCM	SFC300-SCM2	SFC300-PoE	SFC300-SFP	SFC300GS	SFC310C
RJ45Port	4 TP(100Mbps)	4 TP(100Mbps)	4 TP(100Mbps)	4 TP(100Mbps)	4 TP(100Mbps)	4 TP(100Mbps)	4 TP(100Mbps)	2 TP(1Gbps)	1 TP(1Gbps)
SFP/SFP+ Port	-	1 SC(100Mbps)	2 SC(100Mbps)	1 SC(100Mbps)	2 SC(100Mbps)	2 SFP(100Mbps)	2 SFP(100Mbps)	2 SFP(1Gbps)	1 SFP(1Gbps)
Switch Fabric	0.8Gbps	1Gbps	1.2Gbps	1Gbps	1.2Gbps	1.2Gbps	1.2Gbps	8Gbps	4Gbps
Throughtput	0.6Mpps	0.7Mpps	0.9Mpps	0.7Mpps	0.9Mpps	0.9Mpps	0.9Mpps	5.9Mpps	-
MAC Table	1K	1K	1K	1K	1K	1K	1K	4K	2K
Jumbo Frame	-	-	-	-	-	-	-	9K	9K
Operating Temperature	-40 ~ 80℃	-40 ~ 80℃	-40 ~ 80℃	-40 ~ 80℃	-40 ~ 80℃	-40 ~ 80℃	-40 ~ 80℃	-40 ~ 80℃	-40 ~ 80℃
Power Input	DC 12 ~ 56V	DC 12 ~ 56V	DC 12 ~ 56V	DC 12 ~ 56V	DC 12 ~ 56V	DC 48 ~ 56V	DC 12 ~ 56V	DC 12 ~ 56V	DC 12 ~ 56V
Power Consumption	AC 3.7W	AC 4.2W	AC 4.3W	AC 4.2W	AC 4.3W	AC 65W	AC 5.3W	AC 4.2W	AC 2.1W
PoE Capacity	-	-	-	-	-	PoE Max. 60W	-	-
Installation Method	DinRail Mount	DinRail Mount	DinRail Mount	DinRail Mount	DinRail Mount	DinRail Mount	DinRail Mount	DinRail Mount	DinRail Mount
Dimension (WxDxH)	42 x 87 x 112 (mm)	42 x 87 x 112 (mm)	42 x 87 x 112 (mm)	42 x 87 x 112 (mm)	42 x 87 x 112 (mm)	41 x 103 x 133 (mm)	41 x 103 x 133 (mm)	39 x 107 x 97 (mm)	33 x 77 x 110 (mm)
