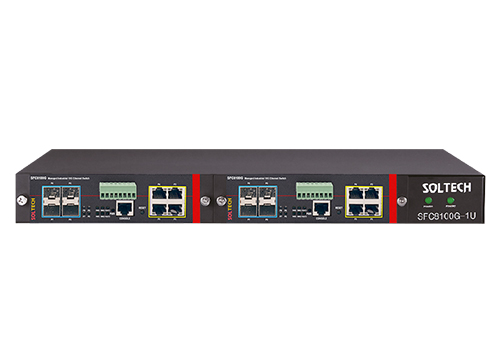

sfc8100g-1u

2 모듈 샤시형, 1Gbps TP 4포트 + 10G SFP 4슬롯, 1U 샤시, 동작온도: 0~60°C, 산업용…

sfc8100g-1u

2 모듈 샤시형, 1Gbps TP 4포트 + 10G SFP 4슬롯, 1U 샤시, 동작온도: 0~60°C, 산업용 스위치

Key Features
  • 10/100/1000Mbps TP 4포트 +100M/1G/10Gbps SFP 4슬롯 모듈
  • 웹 관리, 콘솔, Telnet, SSH, SNMP, RMON, Syslog
  • Scan Manager Program 지원
  • STP(IEEE 802.1D) / RSTP(IEEE802.1w) /MSTP(IEEE802.1s)
  • Port VLAN & VLAN Tagging(IEEE802.1Q)
  • S-Ring(절체, 복구 30ms), Dual-Ring
  • Carrier Ethernet (G.8032 ERPS)
  • IP Multicast support (IGMP/MLD)
  • Priority Queue Support (8 Queue per port)
Download
Specifications
Standards
IEEE 802.3/3u 10BaseT/100BaseTX and 100BaseFX
IEEE 802.3ab/3z 1000BaseT/1000Base-X Fiber
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1Q VLAN Tagging
IEEE 802.3ad Port trunk with LACP
ITU-T G.8032 Ethernet Ring Protection Switching
TP 포트
광 포트(10G)
4 TP(1Gbps)/module
4 SFP(10Gbps)/module
POE포트
-
Switch Fabric
Throughtput
Memory(RAM)
Flash Memory
MAC Table
Jumbo Frame
88Gbps/module
65.4Mpps
256MB
16MB
32K
10K
IEEE 802.1x NAC
STP/RSTP/MSTP
IGMP Snooping
G.8032 ERPS
S-Ring
802.3ad LACP
O
O
O
O
O
O
입력전원
무부하전력
최대전력
전원이중화
AC 100 ~ 240V, DC 36 ~ 56V
26.1W
49.8W
O
동작온도
설치방법
크기
0 ~ 60℃
Rack Mount
417(W) x 241(D) x 44.5(H)mm
