Compare Product Lines

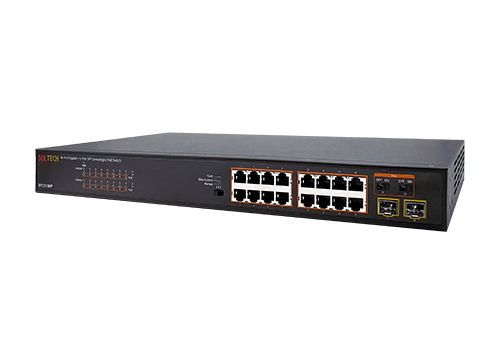

SFC505GHP | SFC510HP | SFC516HP | SFC524HP | |
---|---|---|---|---|
RJ45Port | 5 TP(1Gbps) | 10 TP(1Gbps) | 16 TP(1Gbps) | 24 TP(1Gbps) |
PoE Port | 4 PoE(af/at) | 8 PoE(af/at) | 16 PoE(af/at) | 24 PoE(af/at) |
SFP/SFP+ Port | - | - | 2 SFP(1Gbps) | 2 SFP(1Gbps) |
Switch Fabric | 10Gbps | 20Gbps | 36Gbps | 52Gbps |
Throughtput | 7.44Mpps | 14.8Mpps | 26Mpps | 38.6Mpps |
MAC Table | 2K | 4K | 8K | 8K |
Jumbo Frame | 9K | 9K | 9K | 9K |
Operating Temperature | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ |
Power Input | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V |
Power Consumption | AC 63.5W | AC 128.8W | AC 270.2W | AC 391W |
PoE Capacity | PoE Max. 60W | PoE Max. 125W | PoE Max. 260W | PoE Max. 380W |
Dual Power | - | - | - | - |
Installation Method | Rack Mount | Rack Mount | Rack Mount | Rack Mount |
Dimension (WxDxH) | 185.5 x 123 x 44 (mm) | 280 x 180 x 44 (mm) | 440 x 205 x 44 (mm) | 440 x 207 x 45 (mm) |
