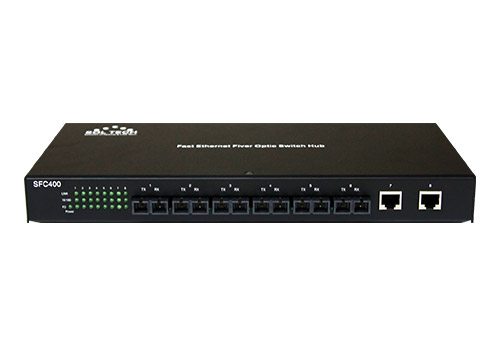

sfc400-scs6

100Mbps TP 6포트 + 100Mbps 광 2포트, SC-싱글모드 20km, 이더넷 스위치

100Mbps TP 6포트 + 100Mbps 광 2포트, SC-싱글모드 20km, 이더넷 스위치

SFC400-SCS6는 100Mbps SC 싱글모드에서 20km 전송이 가능한 이더넷 스위치 입니다.

Key Features

Download

Specifications

Standards

IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX/100BaseFX

TP 포트

광 포트(1G)

콤보 포트

BYPASS 포트

TP 6포트(100Mbps)

광 2포트(100Mbps, SM, 20km)

POE포트

Switch Fabric

Throughtput

Memory(RAM)

Flash Memory

MAC Table

Jumbo Frame

1.6Gbps

입력전원

무부하전력

최대전력

전원이중화

AC 110~220V

동작온도

설치방법

크기

0 ~ 60ºC

Rack Mount

240(W)x165(D)x35(H)mm

Compare Product Lines

	SOLTECH2600	SFC300G	SFC400-SCS	SFC400-SCS2	SFC400-SCS4	SFC400-SCS6	SFC400-SCM	SFC400-SCM2	SFC400-SCM4	SFC400-SCM6
RJ45Port	24 TP(1Gbps)	2 TP(1Gbps)	7 TP(100Mbps)	6 TP(100Mbps)	4 TP(100Mbps)	2 TP(100Mbps)	7 TP(100Mbps)	6 TP(100Mbps)	4 TP(100Mbps)	2 TP(100Mbps)
SFP/SFP+ Port	2 SFP(1Gbps)	2 SFP(1Gbps)	1 SC(100Mbps)	2 SC(100Mbps)	4 SC(100Mbps)	6 SC(100Mbps)	1 SC(100Mbps)	2 SC(100Mbps)	4 SC(100Mbps)	6 SC(100Mbps)
Switch Fabric	52Gbps	8Gbps	1.6Gbps	1.6Gbps	1.6Gbps	1.6Gbps	1.6Gbps	1.6Gbps	1.6Gbps	1.6Gbps
Throughtput	38.6Mpps	5.9Mpps	1.2Mpps	1.2Mpps	1.2Mpps	1.2Mpps	1.2Mpps	1.2Mpps	1.2Mpps	1.2Mpps
Fiber Mode	-	-	Single-mode	Single-mode	Single-mode	Single-mode	Multi-mode	Multi-mode	Multi-mode	Multi-mode
Transmission Distance	-	-	20km	20km	20km	20km	2km	2km	2km	2km
MAC Table	8K	1K	1K	1K	2K	2K	1K	1K	2K	2K
Operating Temperature	0 ~ 40℃	0 ~ 60℃	0 ~ 60℃	0 ~ 60℃	0 ~ 60℃	0 ~ 60℃	0 ~ 60℃	0 ~ 60℃	0 ~ 60℃	0 ~ 60℃
Power Input	AC 100 ~ 240V	DC 12V	AC 100 ~ 240V	AC 100 ~ 240V	AC 100 ~ 240V	AC 100 ~ 240V	AC 100 ~ 240V	AC 100 ~ 240V	AC 100 ~ 240V	AC 100 ~ 240V
Power Consumption	AC 8.7W	AC 8.2W	AC 5.6W	AC 7.8W	AC 13.6W	AC 13.8W	AC 5.6W	AC 7.8W	AC 13.6W	AC 13.8W
Installation Method	Rack Mount	Wall Mount	Rack Mount	Rack Mount	Rack Mount	Rack Mount	Rack Mount	Rack Mount	Rack Mount	Rack Mount
Dimension(WxDxH)	440x205x44(mm)	98x105x26(mm)	240x165x35(mm)	240x165x35(mm)	317x150x35(mm)	317x150x35(mm)	240x165x35(mm)	240x165x35(mm)	317x150x35(mm)	317x150x35(mm)
