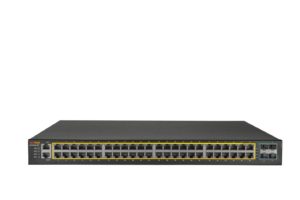

sfc9300-48t

1Gbps TP 48포트 + 10Gbps SFP 4슬롯, SDN Switch

sfc9300-48t

1Gbps TP 48포트 + 10Gbps SFP 4슬롯, SDN Switch

Key Features
  • Data Center Ethernet Network
  • 10G 광통신 LAYER 3 이더넷 스위치
  • 최대 1.44Tbps 의 스위칭 용량
  • OpenFlow specification 1.3.x/1.4.x
  • L2 to L4 complete matching fields
  • L2 GRE tunnel/VXLAN tunnel/NVGRE tunnel
  • MPLS L2 VPN/Flex MPLS
  • IPv6
  • Low power consumption
Download
Specifications
Standards
IEEE 802.3/3u/3ab/3z 10BaseT/100BaseTX and 1000BaseT/Gigabit Fiber
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.3ad Port trunk with LACP
IEEE 802.1w Rapid spanning tree protocol
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
TP 포트
광 포트(10G)
48 TP(1Gbps)
10G SFP 4슬롯
Switch Fabric
Throughtput
Memory(RAM)
Flash Memory
MAC Table
Jumbo Frame
176Gbps
132Mpps
1024MB
8096MB
32K
9.6K
IEEE 802.1x NAC
802.3ad LACP
IGMP Snooping
STP/RSTP/MSTP
G.8032 ERPS Ring
S-Ring
O
O
O
O
O
-
입력전원
무부하전력
최대전력
전원이중화
AC 100~240V
100W
O
동작온도
설치방법
크기
0 ~ 45ºC
Rack Mount
440(W)x360(D)x44(H)mm
